Controller Node에 설치를 한다.
1) PKG 설치
[root@controller ~]# yum install -y openstack-dashboard
2) config 를 수정한다.
2-1) config 수정전 원본을 백업한다.
[root@controller ~]# cp -rpRf /etc/openstack-dashboard/local_settings /etc/openstack-dashboard/local_settings.orig
2-2) config를 수정한다.
2-2-1) /etc/openstack-dashboard/local_settings"
- 아래 필드 부분은 필히 있는지 확인하고 없을 경우 추가 한다.
[root@controller ~]# vi /etc/openstack-dashboard/local_settings
~(생략)
WEBROOT = '/dashboard/'
~(생략)
#ALLOWED_HOSTS = ['horizon.example.com', 'localhost']
ALLOWED_HOSTS = ['*']
~(생략)
SESSION_ENGINE = 'django.contrib.sessions.backends.cache'
CACHES = {
'default': {
#'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
'BACKEND': 'django.core.cache.backends.locmem.LocMemCache',
'LOCATION': '39.117.41.121:11211',
}
}
~(생략)
#OPENSTACK_HOST = "127.0.0.1"
OPENSTACK_HOST = "CONTROLLER_MGMT_IP_ADDR"
#OPENSTACK_KEYSTONE_URL = "http://%s:5000/v3" % OPENSTACK_HOST
OPENSTACK_KEYSTONE_URL = "http://%s:5000/v3" % OPENSTACK_HOST
~(생략)
#OPENSTACK_NEUTRON_NETWORK = {
# 'enable_auto_allocated_network': False,
# 'enable_distributed_router': False,
# 'enable_fip_topology_check': True,
# 'enable_ha_router': False,
# 'enable_ipv6': True,
# # TODO(amotoki): Drop OPENSTACK_NEUTRON_NETWORK completely from here.
# # enable_quotas has the different default value here.
# 'enable_quotas': True,
# 'enable_rbac_policy': True,
# 'enable_router': True,
#
# 'default_dns_nameservers': [],
# 'supported_provider_types': ['*'],
# 'segmentation_id_range': {},
# 'extra_provider_types': {},
# 'supported_vnic_types': ['*'],
# 'physical_networks': [],
#
#}
OPENSTACK_NEUTRON_NETWORK = {
'enable_auto_allocated_network': False,
'enable_ipv6': True,
'enable_rbac_policy': True,
'enable_router': True,
'enable_quotas': True,
'enable_distributed_router': True,
'enable_ha_router': True,
'enable_lb': True,
'enable_firewall': True,
'enable_vpn': True,
'enable_fip_topology_check': True,
'default_dns_nameservers': [],
'supported_provider_types': ['*'],
'segmentation_id_range': {},
'extra_provider_types': {},
'supported_vnic_types': ['*'],
'physical_networks': [],
}
~(생략)
#TIME_ZONE = "UTC"
TIME_ZONE = "Asia/Seoul"
~(생략)
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True
OPENSTACK_API_VERSIONS = {
"data-processing": 1.1,
"identity": 3,
"image": 2,
"volume": 3,
"compute": 2,
}
OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = "Default"
OPENSTACK_KEYSTONE_DEFAULT_ROLE = "user"
OPENSTACK_KEYSTONE_BACKEND = {
'name': 'native',
'can_edit_user': True,
'can_edit_group': True,
'can_edit_project': True,
'can_edit_domain': True,
'can_edit_role': True,
}
OPENSTACK_HYPERVISOR_FEATURES = {
'can_set_mount_point': False,
'can_set_password': False,
'requires_keypair': False,
'enable_quotas': True
}
OPENSTACK_CINDER_FEATURES = {
'enable_backup': False,
}
주석 포함 "/etc/openstack-dashboard/local_settings" 전체 내용은 아래를 확인한다.
[root@controller ~]# cat /etc/openstack-dashboard/local_settings
# -*- coding: utf-8 -*-
# ----------------------------------------------------------------------
# NOTE: The default values of the settings are defined in
# openstack_dashboard/defaults.py. Prevously most available settings
# were listed in this example file, but it is no longer true.
# For available settings, see openstack_dashboard/defaults.py and
# the horizon setting reference found at
# https://docs.openstack.org/horizon/latest/configuration/settings.html.
#
# Django related settings and HORIZON_CONFIG still exist here.
# Keep in my mind that they will be revisit in upcoming releases.
# ----------------------------------------------------------------------
import os
from django.utils.translation import ugettext_lazy as _
from openstack_dashboard.settings import HORIZON_CONFIG
DEBUG = False
# This setting controls whether or not compression is enabled. Disabling
# compression makes Horizon considerably slower, but makes it much easier
# to debug JS and CSS changes
#COMPRESS_ENABLED = not DEBUG
# This setting controls whether compression happens on the fly, or offline
# with `python manage.py compress`
# See https://django-compressor.readthedocs.io/en/latest/usage/#offline-compression
# for more information
#COMPRESS_OFFLINE = not DEBUG
WEBROOT = '/dashboard/'
# If horizon is running in production (DEBUG is False), set this
# with the list of host/domain names that the application can serve.
# For more information see:
# https://docs.djangoproject.com/en/dev/ref/settings/#allowed-hosts
#ALLOWED_HOSTS = ['horizon.example.com', 'localhost']
ALLOWED_HOSTS = ['*']
# Set SSL proxy settings:
# Pass this header from the proxy after terminating the SSL,
# and don't forget to strip it from the client's request.
# For more information see:
# https://docs.djangoproject.com/en/dev/ref/settings/#secure-proxy-ssl-header
#SECURE_PROXY_SSL_HEADER = ('HTTP_X_FORWARDED_PROTO', 'https')
# If Horizon is being served through SSL, then uncomment the following two
# settings to better secure the cookies from security exploits
#CSRF_COOKIE_SECURE = True
#SESSION_COOKIE_SECURE = True
# If provided, a "Report Bug" link will be displayed in the site header
# which links to the value of this setting (ideally a URL containing
# information on how to report issues).
#HORIZON_CONFIG["bug_url"] = "http://bug-report.example.com"
# Show backdrop element outside the modal, do not close the modal
# after clicking on backdrop.
#HORIZON_CONFIG["modal_backdrop"] = "static"
# Specify a regular expression to validate user passwords.
#HORIZON_CONFIG["password_validator"] = {
# "regex": '.*',
# "help_text": _("Your password does not meet the requirements."),
#}
# Turn off browser autocompletion for forms including the login form and
# the database creation workflow if so desired.
#HORIZON_CONFIG["password_autocomplete"] = "off"
# Setting this to True will disable the reveal button for password fields,
# including on the login form.
#HORIZON_CONFIG["disable_password_reveal"] = False
LOCAL_PATH = '/tmp'
# Set custom secret key:
# You can either set it to a specific value or you can let horizon generate a
# default secret key that is unique on this machine, e.i. regardless of the
# amount of Python WSGI workers (if used behind Apache+mod_wsgi): However,
# there may be situations where you would want to set this explicitly, e.g.
# when multiple dashboard instances are distributed on different machines
# (usually behind a load-balancer). Either you have to make sure that a session
# gets all requests routed to the same dashboard instance or you set the same
# SECRET_KEY for all of them.
SECRET_KEY='3ce251960b27b6b82837'
# We recommend you use memcached for development; otherwise after every reload
# of the django development server, you will have to login again. To use
# memcached set CACHES to something like below.
# For more information, see
# https://docs.djangoproject.com/en/1.11/topics/http/sessions/.
#CACHES = {
# 'default': {
# 'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
# 'LOCATION': '127.0.0.1:11211',
# },
#}
# If you use ``tox -e runserver`` for developments,then configure
# SESSION_ENGINE to django.contrib.sessions.backends.signed_cookies
# as shown below:
#SESSION_ENGINE = 'django.contrib.sessions.backends.signed_cookies'
SESSION_ENGINE = 'django.contrib.sessions.backends.cache'
CACHES = {
'default': {
#'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
'BACKEND': 'django.core.cache.backends.locmem.LocMemCache',
'LOCATION': 'CONTROLLER_MGMT_IP_ADDR:11211',
}
}
# Send email to the console by default
EMAIL_BACKEND = 'django.core.mail.backends.console.EmailBackend'
# Or send them to /dev/null
#EMAIL_BACKEND = 'django.core.mail.backends.dummy.EmailBackend'
# Configure these for your outgoing email host
#EMAIL_HOST = 'smtp.my-company.com'
#EMAIL_PORT = 25
#EMAIL_HOST_USER = 'djangomail'
#EMAIL_HOST_PASSWORD = 'top-secret!'
#OPENSTACK_HOST = "127.0.0.1"
#OPENSTACK_HOST = "controller"
OPENSTACK_HOST = "CONTROLLER_MGMT_IP_ADDR"
#OPENSTACK_KEYSTONE_URL = "http://%s:5000/v3" % OPENSTACK_HOST
OPENSTACK_KEYSTONE_URL = "http://%s:5000/v3" % OPENSTACK_HOST
# The OPENSTACK_NEUTRON_NETWORK settings can be used to enable optional
# services provided by neutron. Options currently available are load
# balancer service, security groups, quotas, VPN service.
#
#OPENSTACK_NEUTRON_NETWORK = {
# 'enable_auto_allocated_network': False,
# 'enable_distributed_router': False,
# 'enable_fip_topology_check': True,
# 'enable_ha_router': False,
# 'enable_ipv6': True,
# # TODO(amotoki): Drop OPENSTACK_NEUTRON_NETWORK completely from here.
# # enable_quotas has the different default value here.
# 'enable_quotas': True,
# 'enable_rbac_policy': True,
# 'enable_router': True,
#
# 'default_dns_nameservers': [],
# 'supported_provider_types': ['*'],
# 'segmentation_id_range': {},
# 'extra_provider_types': {},
# 'supported_vnic_types': ['*'],
# 'physical_networks': [],
#
#}
OPENSTACK_NEUTRON_NETWORK = {
'enable_auto_allocated_network': False,
'enable_ipv6': True,
'enable_rbac_policy': True,
'enable_router': True,
'enable_quotas': True,
'enable_distributed_router': True,
'enable_ha_router': True,
'enable_lb': True,
'enable_firewall': True,
'enable_vpn': True,
'enable_fip_topology_check': True,
'default_dns_nameservers': [],
'supported_provider_types': ['*'],
'segmentation_id_range': {},
'extra_provider_types': {},
'supported_vnic_types': ['*'],
'physical_networks': [],
}
# The timezone of the server. This should correspond with the timezone
# of your entire OpenStack installation, and hopefully be in UTC.
#TIME_ZONE = "UTC"
TIME_ZONE = "Asia/Seoul"
# Change this patch to the appropriate list of tuples containing
# a key, label and static directory containing two files:
# _variables.scss and _styles.scss
#AVAILABLE_THEMES = [
# ('default', 'Default', 'themes/default'),
# ('material', 'Material', 'themes/material'),
# ('example', 'Example', 'themes/example'),
#]
LOGGING = {
'version': 1,
# When set to True this will disable all logging except
# for loggers specified in this configuration dictionary. Note that
# if nothing is specified here and disable_existing_loggers is True,
# django.db.backends will still log unless it is disabled explicitly.
'disable_existing_loggers': False,
# If apache2 mod_wsgi is used to deploy OpenStack dashboard
# timestamp is output by mod_wsgi. If WSGI framework you use does not
# output timestamp for logging, add %(asctime)s in the following
# format definitions.
'formatters': {
'console': {
'format': '%(levelname)s %(name)s %(message)s'
},
'operation': {
# The format of "%(message)s" is defined by
# OPERATION_LOG_OPTIONS['format']
'format': '%(message)s'
},
},
'handlers': {
'null': {
'level': 'DEBUG',
'class': 'logging.NullHandler',
},
'console': {
# Set the level to "DEBUG" for verbose output logging.
'level': 'DEBUG' if DEBUG else 'INFO',
'class': 'logging.StreamHandler',
'formatter': 'console',
},
'operation': {
'level': 'INFO',
'class': 'logging.StreamHandler',
'formatter': 'operation',
},
},
'loggers': {
'horizon': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'horizon.operation_log': {
'handlers': ['operation'],
'level': 'INFO',
'propagate': False,
},
'openstack_dashboard': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'novaclient': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'cinderclient': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'keystoneauth': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'keystoneclient': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'glanceclient': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'neutronclient': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'swiftclient': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'oslo_policy': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'openstack_auth': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
'django': {
'handlers': ['console'],
'level': 'DEBUG',
'propagate': False,
},
# Logging from django.db.backends is VERY verbose, send to null
# by default.
'django.db.backends': {
'handlers': ['null'],
'propagate': False,
},
'requests': {
'handlers': ['null'],
'propagate': False,
},
'urllib3': {
'handlers': ['null'],
'propagate': False,
},
'chardet.charsetprober': {
'handlers': ['null'],
'propagate': False,
},
'iso8601': {
'handlers': ['null'],
'propagate': False,
},
'scss': {
'handlers': ['null'],
'propagate': False,
},
},
}
# 'direction' should not be specified for all_tcp/udp/icmp.
# It is specified in the form.
SECURITY_GROUP_RULES = {
'all_tcp': {
'name': _('All TCP'),
'ip_protocol': 'tcp',
'from_port': '1',
'to_port': '65535',
},
'all_udp': {
'name': _('All UDP'),
'ip_protocol': 'udp',
'from_port': '1',
'to_port': '65535',
},
'all_icmp': {
'name': _('All ICMP'),
'ip_protocol': 'icmp',
'from_port': '-1',
'to_port': '-1',
},
'ssh': {
'name': 'SSH',
'ip_protocol': 'tcp',
'from_port': '22',
'to_port': '22',
},
'smtp': {
'name': 'SMTP',
'ip_protocol': 'tcp',
'from_port': '25',
'to_port': '25',
},
'dns': {
'name': 'DNS',
'ip_protocol': 'tcp',
'from_port': '53',
'to_port': '53',
},
'http': {
'name': 'HTTP',
'ip_protocol': 'tcp',
'from_port': '80',
'to_port': '80',
},
'pop3': {
'name': 'POP3',
'ip_protocol': 'tcp',
'from_port': '110',
'to_port': '110',
},
'imap': {
'name': 'IMAP',
'ip_protocol': 'tcp',
'from_port': '143',
'to_port': '143',
},
'ldap': {
'name': 'LDAP',
'ip_protocol': 'tcp',
'from_port': '389',
'to_port': '389',
},
'https': {
'name': 'HTTPS',
'ip_protocol': 'tcp',
'from_port': '443',
'to_port': '443',
},
'smtps': {
'name': 'SMTPS',
'ip_protocol': 'tcp',
'from_port': '465',
'to_port': '465',
},
'imaps': {
'name': 'IMAPS',
'ip_protocol': 'tcp',
'from_port': '993',
'to_port': '993',
},
'pop3s': {
'name': 'POP3S',
'ip_protocol': 'tcp',
'from_port': '995',
'to_port': '995',
},
'ms_sql': {
'name': 'MS SQL',
'ip_protocol': 'tcp',
'from_port': '1433',
'to_port': '1433',
},
'mysql': {
'name': 'MYSQL',
'ip_protocol': 'tcp',
'from_port': '3306',
'to_port': '3306',
},
'rdp': {
'name': 'RDP',
'ip_protocol': 'tcp',
'from_port': '3389',
'to_port': '3389',
},
}
# Help URL can be made available for the client. To provide a help URL, edit the
# following attribute to the URL of your choice.
#HORIZON_CONFIG["help_url"] = "http://openstack.mycompany.org"
#
#
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True
OPENSTACK_API_VERSIONS = {
"data-processing": 1.1,
"identity": 3,
"image": 2,
"volume": 3,
"compute": 2,
}
OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = "Default"
OPENSTACK_KEYSTONE_DEFAULT_ROLE = "user"
OPENSTACK_KEYSTONE_BACKEND = {
'name': 'native',
'can_edit_user': True,
'can_edit_group': True,
'can_edit_project': True,
'can_edit_domain': True,
'can_edit_role': True,
}
OPENSTACK_HYPERVISOR_FEATURES = {
'can_set_mount_point': False,
'can_set_password': False,
'requires_keypair': False,
'enable_quotas': True
}
OPENSTACK_CINDER_FEATURES = {
'enable_backup': False,
}
2-2-2) /etc/httpd/conf.d/openstack-dashboard.conf 확인
"/etc/httpd/conf.d/openstack-dashboard.conf" 파일내 "WSGIApplicationGroup %{GLOBAL}"가 포함되어 있는지 확인한다.
없을 경우 추가 한다.
[root@controller ~]# vi /etc/httpd/conf.d/openstack-dashboard.conf
WSGIDaemonProcess dashboard
WSGIProcessGroup dashboard
WSGISocketPrefix run/wsgi
WSGIApplicationGroup %{GLOBAL} ### 이부분이 있는지 필히 확인!!!
WSGIScriptAlias /dashboard /usr/share/openstack-dashboard/openstack_dashboard/wsgi/django.wsgi
Alias /dashboard/static /usr/share/openstack-dashboard/static
<Directory /usr/share/openstack-dashboard/openstack_dashboard/wsgi>
Options All
AllowOverride All
Require all granted
</Directory>
<Directory /usr/share/openstack-dashboard/static>
Options All
AllowOverride All
Require all granted
</Directory>
3) Daemon재시작
[root@controller ~]# systemctl restart httpd.service memcached.service
[root@controller ~]# systemctl status httpd.service memcached.service
● httpd.service - The Apache HTTP Server
Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
Drop-In: /usr/lib/systemd/system/httpd.service.d
└─openstack-dashboard.conf
Active: active (running) since 수 2019-11-06 19:48:34 KST; 19min ago
Docs: man:httpd(8)
man:apachectl(8)
Process: 4525 ExecStop=/bin/kill -WINCH ${MAINPID} (code=exited, status=0/SUCCESS)
Process: 4564 ExecStartPre=/usr/bin/python2 /usr/share/openstack-dashboard/manage.py compress --force -v0 (code=exited, status=0/SUCCESS)
Process: 4540 ExecStartPre=/usr/bin/python2 /usr/share/openstack-dashboard/manage.py collectstatic --noinput --clear -v0 (code=exited, status=0/SUCCESS)
Main PID: 4652 (httpd)
Status: "Total requests: 67; Current requests/sec: 0; Current traffic: 0 B/sec"
CGroup: /system.slice/httpd.service
├─4652 /usr/sbin/httpd -DFOREGROUND
├─4653 /usr/sbin/httpd -DFOREGROUND
├─4654 /usr/sbin/httpd -DFOREGROUND
├─4655 /usr/sbin/httpd -DFOREGROUND
├─4656 /usr/sbin/httpd -DFOREGROUND
├─4657 (wsgi:keystone- -DFOREGROUND
├─4658 (wsgi:keystone- -DFOREGROUND
├─4659 (wsgi:keystone- -DFOREGROUND
├─4660 (wsgi:keystone- -DFOREGROUND
├─4661 (wsgi:keystone- -DFOREGROUND
├─4662 /usr/sbin/httpd -DFOREGROUND
├─4664 /usr/sbin/httpd -DFOREGROUND
├─4666 /usr/sbin/httpd -DFOREGROUND
├─4732 /usr/sbin/httpd -DFOREGROUND
├─4736 /usr/sbin/httpd -DFOREGROUND
├─4739 /usr/sbin/httpd -DFOREGROUND
├─4876 /usr/sbin/httpd -DFOREGROUND
├─4877 /usr/sbin/httpd -DFOREGROUND
├─4889 /usr/sbin/httpd -DFOREGROUND
└─4891 /usr/sbin/httpd -DFOREGROUND
11월 06 19:47:56 controller systemd[1]: Starting The Apache HTTP Server...
11월 06 19:48:34 controller python2[4564]: Compressing... done
11월 06 19:48:34 controller python2[4564]: Compressed 7 block(s) from 4 template(s) for 2 context(s).
11월 06 19:48:34 controller systemd[1]: Started The Apache HTTP Server.
● memcached.service - memcached daemon
Loaded: loaded (/usr/lib/systemd/system/memcached.service; enabled; vendor preset: disabled)
Active: active (running) since 수 2019-11-06 19:07:05 KST; 1h 1min ago
Main PID: 411 (memcached)
CGroup: /system.slice/memcached.service
└─411 /usr/bin/memcached -p 11211 -u memcached -m 64 -c 1024 -l 127.0.0.1,::1,controller
11월 06 19:07:05 controller systemd[1]: Started memcached daemon.
확인
Dashbord에 접속하여 확인한다.
- URL => http://CONTROLLER_IP_ADDR/dashboard

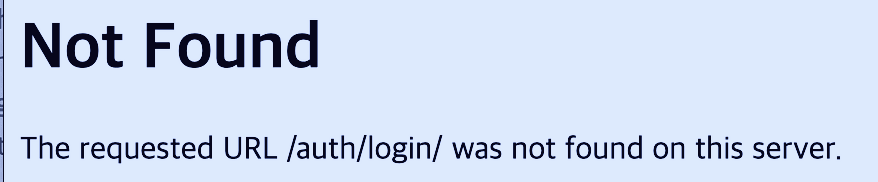

만약 dashboard에 접속시 "The requested URL /auth/login/ was not found on this server."와 같은 에러가 발생할 경우 아래 링크를 참조 한다.
